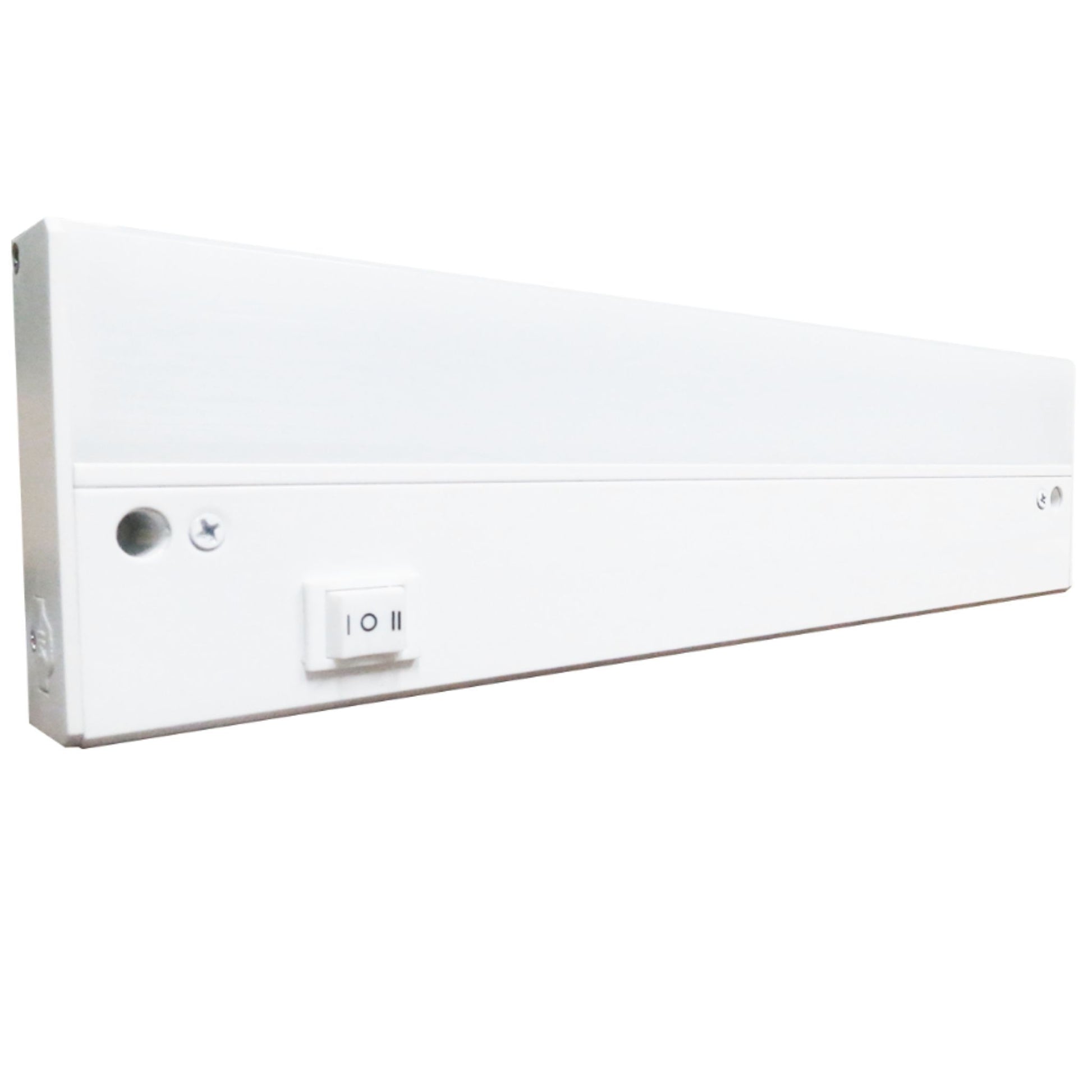

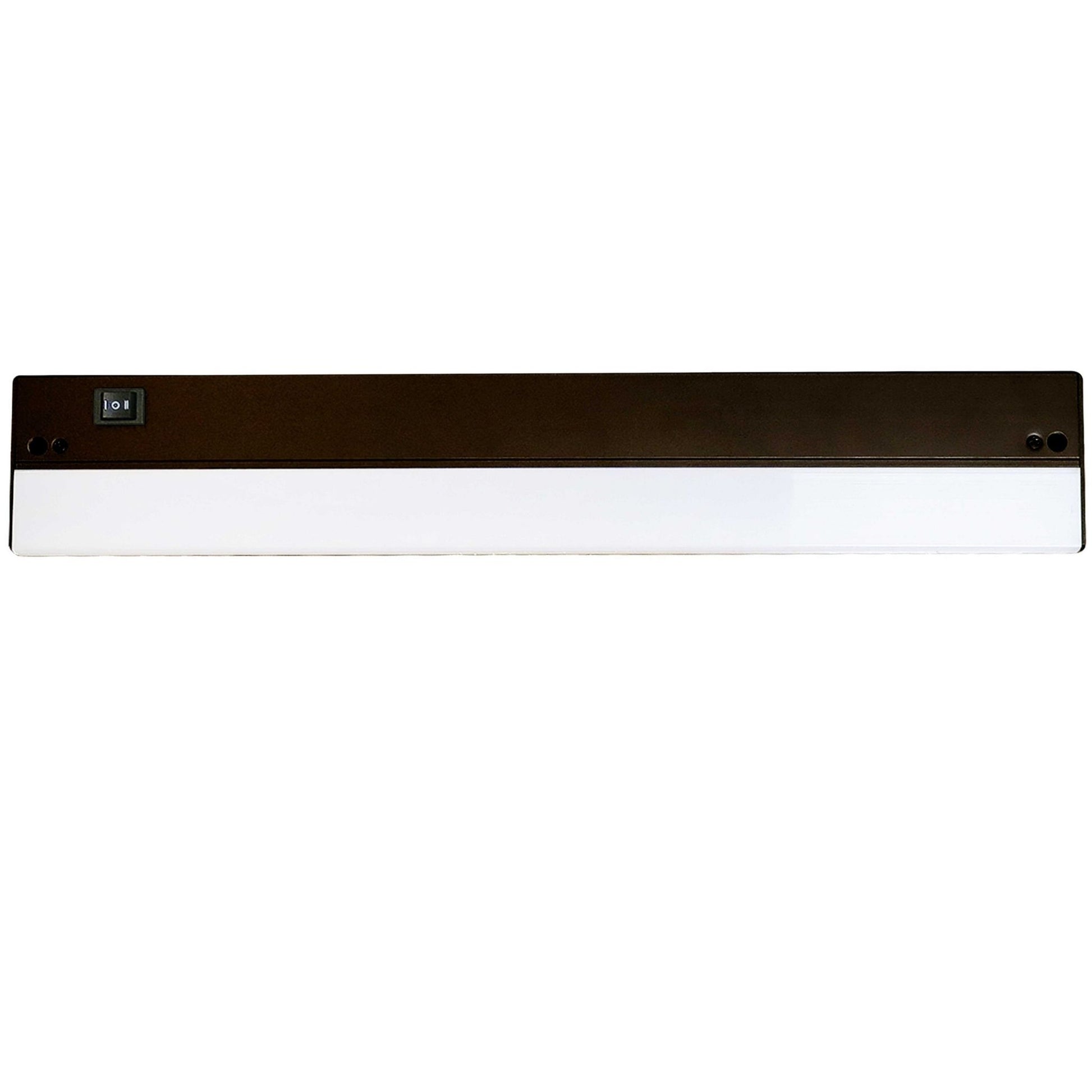

Low Profile LED Under Cabinet Lighting

SKU LED_UCL8_3W_30
  • Low Profile LED Under Cabinet Lighting

Lumivert Lighting

Low Profile LED Under Cabinet Lighting

SKU LED_UCL8_3W_30

Low Profile LED Under Cabinet Lighting

Features:
• Slim profile design ideal for kitchen installation
• Nm/Bx connector | Direct connector
• Wiring knockouts available for wiring flexibility
• Hi/low rocker switch included
Fixture Construction:
• Extruded aluminum housing | Painted finish
• Extruded white acrylic lens diffuser
Listing & Certification:
  • ETL Certified for Dry & Damp Locations, CSA Standard C22.2

Electrical Connection:

• 120V/60Hz | AC Only
• Minimum 105°C supply conductors
• Copper electrical conductors [high-temperature combustibility]
• Triac-dimmable LED driver


LED-UCL8/3W/30 WH
3W LED COB
250
90 ≤
8 x 3 x 1
3000K

LED-UCL12/5W/30 WH
5W LED COB
400
90 ≤
12 x 3 x 1
3000K

LED-UCL18/8W/30 WH
8W LED COB
600
90 ≤
18 x 3 x 1
3000K

LED-UCL24/12W/30 WH
12W LED COB
800
90 ≤
24 x 3 x 1
3000K

LED-UCL32/15W/30 WH
15W LED COB
1350
90 ≤
32 x 3 x 1
3000K

LED-UCL40/18W/30 WH
18W LED COB
1500
90 ≤
40 x 3 x 1
3000K
