Dimensions
LED-RCJ5/9W/30: 5Ø x 2H (4.75H including J Box)
LED-RCJ7/15W/30: 7Ø x 2H (4.75H including J Box)

Listings & Certification
• ETL Certified for Wet Location | CSA Std. C22.2 NO.250.0
• Conforms to UL Standard 1598
• State of California Title 24
• Type IC Rated

Electrical

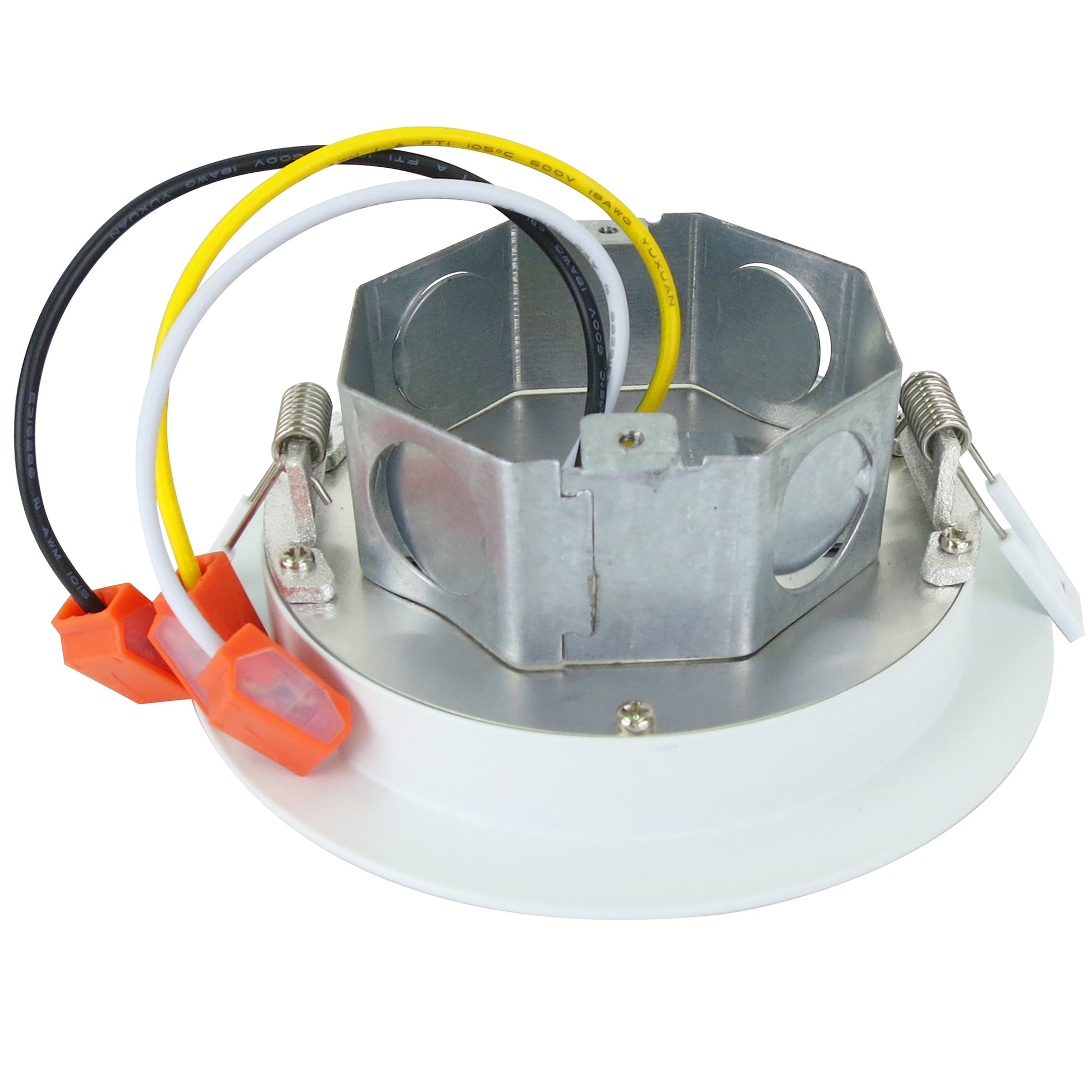

• 3" Octagonal junction box attached
• Minimum 90°C-rated supply conduits
• Line voltage operation: 120V/60Hz
• Dimmable
• Epistar-brand LED chips, driver-on-board

Features
• Low profile, 3/4” depth not including junction box
• Extruded aluminum housing, powder-coated finishes
• Edge-lit lighting eliminates hot spots, creates even lighting distribution
• Frosted polycarbonate diffuser
• CCT Available: 3000K-4000K
